Split Ring Resonator (SRR) Metamaterial Element for X-Band Applications

This project presents the design and electromagnetic characterization of a split ring resonator (SRR) metamaterial element operating in the X-band. The SRR is implemented as a concentric dual-ring structure with narrow gaps, forming a subwavelength resonant inclusion that can exhibit negative effective permeability and, in combination with complementary structures, negative permittivity. Using a CST Microwave Studio model, the reflection and transmission coefficients (\( S_{11} \) and \( S_{21} \)) of an SRR-loaded slab are obtained, and an approximate retrieval technique is applied to extract the effective refractive index, permittivity \( \epsilon_{\text{eff}} \), and permeability \( \mu_{\text{eff}} \) over frequency. An interactive calculator is provided to estimate \( \epsilon_{\text{eff}} \) and \( \mu_{\text{eff}} \) from measured or simulated S-parameters, enabling students to link full-wave data with homogenized metamaterial parameters.

Keywords: Split Ring Resonator, Metamaterials, Negative Permeability, X-Band, S-parameter Retrieval, Effective Medium

1. Introduction

Artificially engineered metamaterials have enabled exotic electromagnetic responses such as negative refractive index, near-zero index, and highly dispersive effective parameters. Among the earliest and most influential unit cells is the split ring resonator (SRR), introduced as a compact resonant inclusion capable of supporting strong magnetic response at microwave frequencies. By periodically loading a host medium with SRRs, one can realize effective negative permeability around the resonance while maintaining sub-wavelength lattice dimensions.

In this project, we consider a planar SRR element intended for X-band applications (approximately 8–12 GHz). The focus is on:

• Understanding the LC-type resonance mechanism of SRRs;
• Designing the geometry to place the fundamental resonance in the desired band;
• Extracting effective parameters (\( \epsilon_{\text{eff}} \), \( \mu_{\text{eff}} \)) from S-parameters using a simplified retrieval approach.

2. Split Ring Resonator Geometry and Physical Insight

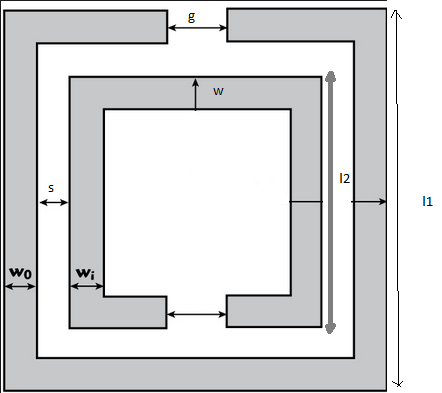

2.1 Geometrical Parameters

A typical planar SRR consists of two concentric metallic rings with narrow splits placed on a dielectric substrate backed by a ground plane or suspended in free space. The main geometrical parameters are:

• \( l_1 \): outer ring side length;
• \( l_2 \): inner ring side length;
• \( w \): conductor (ring) width;
• \( s \): spacing between the inner and outer rings;
• \( g \): gap width in each ring;
• \( w_0, w_i \): feed line or waveguide widths in some implementations;
• \( h \): substrate thickness, with relative permittivity \( \epsilon_r \).

2.2 LC Resonance and Effective Permeability

When the SRR is excited by a time-varying magnetic field normal to the plane of the rings, circulating currents are induced, leading to a resonant response. The structure behaves roughly like a series LC circuit, where:

• Inductance \( L \) is associated with the current loop along the metallic rings;
• Capacitance \( C \) arises from the gaps and inter-ring spacing.

The approximate resonant frequency of the SRR can be written as:

\( f_0 \approx \frac{1}{2\pi \sqrt{LC}} \)

Around this frequency, the effective permeability of an SRR-loaded medium can become negative, enabling left-handed or double-negative (DNG) behavior when combined with structures providing negative permittivity.

3. SRR Design for X-Band Operation

3.1 Substrate and Frequency Specification

For an X-band design, the target resonance might be chosen near 9–10 GHz, taking into account fabrication tolerances and coupling effects in an array. Typical design steps:

1. Select substrate material with permittivity \( \epsilon_r \) and thickness \( h \) (e.g., Rogers, FR-4).
2. Choose outer ring size \( l_1 \) based on the approximate effective wavelength at the target frequency (usually \( l_1 \ll \lambda_0 \) to maintain subwavelength size).
3. Set inner ring size \( l_2 \), spacing \( s \), and gap \( g \) to tune capacitance and coupling.
4. Adjust ring width \( w \) to control inductance and loss.

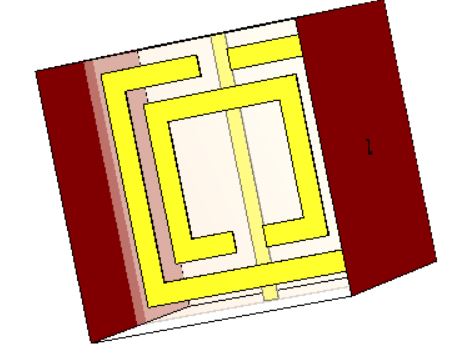

3.2 Simulation Setup in CST

In CST Microwave Studio, the SRR can be simulated in a unit-cell configuration with periodic boundary conditions (PBCs) or as a finite slab excited by a waveguide/plane wave. For parameter retrieval, a common approach is to model a finite-thickness slab of repeated SRR cells and compute S-parameters for normal incidence.

• Define unit cell dimensions and apply periodic boundaries in the lateral directions.
• Use open (add space) or Floquet boundaries along the propagation direction.
• Excite the structure with a waveport or plane wave; extract \( S_{11}(f) \) and \( S_{21}(f) \).
• Export magnitude (in dB) and phase (in degrees) for the retrieval process.

4. Effective Medium Approximation and Parameter Retrieval

When the SRR lattice period is much smaller than the free-space wavelength, the structure can be treated as an effectively homogeneous slab characterized by an equivalent permittivity \( \epsilon_{\text{eff}} \) and permeability \( \mu_{\text{eff}} \). From measured or simulated S-parameters, several retrieval techniques exist, such as the Nicholson–Ross–Weir (NRW) method and its variants.

4.1 Basic Relations

For a slab of thickness \( d \), the complex transmission coefficient can be approximated as:

\( S_{21} \approx |S_{21}| e^{j\phi_{21}} \approx e^{-j k_0 n_{\text{eff}} d} \),

where \( k_0 = \frac{2\pi f}{c} \) is the free-space wavenumber and \( n_{\text{eff}} \) is the effective refractive index. Ignoring multiple reflections for an approximate retrieval, the real part of \( n_{\text{eff}} \) can be estimated from the phase of \( S_{21} \):

\( n_{\text{eff}} \approx -\frac{\phi_{21}}{k_0 d} \),

with \( \phi_{21} \) expressed in radians. The effective wave impedance \( z_{\text{eff}} \) can be approximated from the magnitudes of \( S_{11} \) and \( S_{21} \) under moderate-loss assumptions:

\( z_{\text{eff}} \approx \sqrt{\frac{(1 + |S_{11}|)^2 - |S_{21}|^2}{(1 - |S_{11}|)^2 - |S_{21}|^2}}. \)

Once \( n_{\text{eff}} \) and \( z_{\text{eff}} \) are known, the effective permittivity and permeability follow:

\( \epsilon_{\text{eff}} \approx \frac{n_{\text{eff}}}{z_{\text{eff}}}, \quad \mu_{\text{eff}} \approx n_{\text{eff}} z_{\text{eff}}. \)

The interactive calculator below implements this approximate retrieval using frequency, slab thickness, and S-parameter data (magnitude and phase). It is intended for quick educational analysis; for rigorous designs, full complex NRW retrieval with branch selection should be performed in a dedicated Python or MATLAB script.

5. Interactive SRR Metamaterial Parameter Calculator

Enter the operating frequency, slab thickness, and S-parameters (from CST or measurements). Magnitudes are specified in dB, and the phase of \( S_{21} \) is given in degrees. The calculator returns the approximate effective refractive index, permittivity, and permeability.

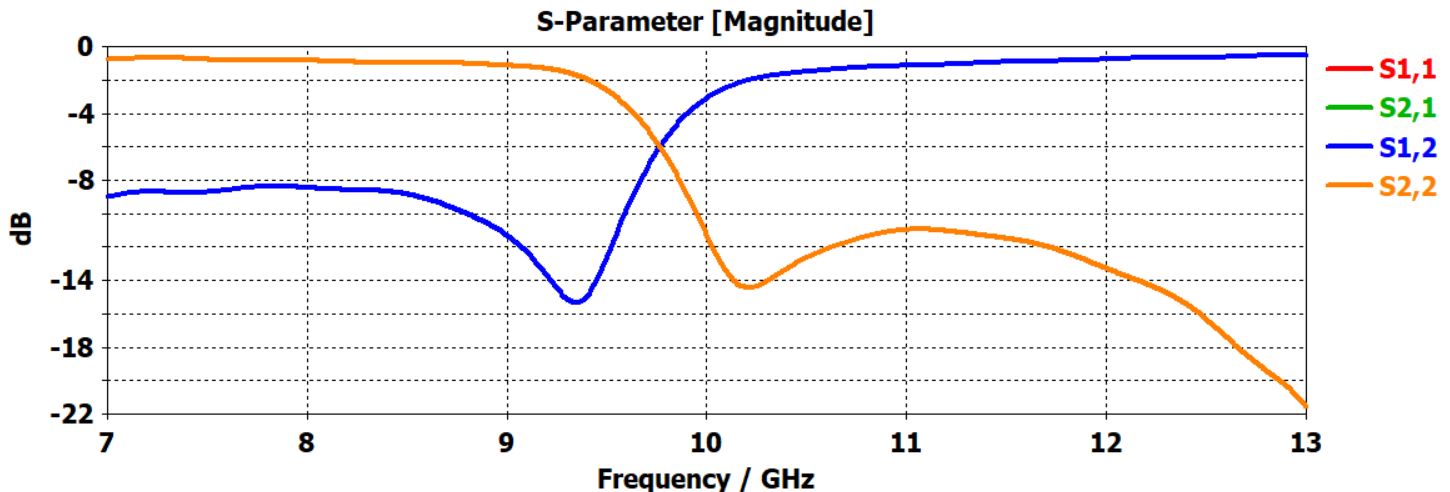

6. Discussion of Simulation Results

When the SRR geometry is tuned properly, the retrieved effective parameters typically show a Lorentz-type dispersion in \( \mu_{\text{eff}} \), with a region where \( \mu_{\text{eff}} < 0 \) just above the resonance frequency. In some designs, \( \epsilon_{\text{eff}} \) remains close to unity, enabling negative-index behavior only when combined with additional capacitive elements or complementary SRRs.

Key observations to highlight in the X-band SRR design:

• Sharp resonance in |S21| corresponding to strong magnetic response.
• Phase jump in \( S_{21} \) around the resonance, reflected in the effective index.
• Frequency band where \( \Re\{\mu_{\text{eff}}\} \) becomes negative, while loss (imaginary part) remains acceptable.
• Sensitivity of resonance to geometric parameters such as gap \( g \), spacing \( s \), and ring width \( w \).

7. Downloadable Project Files (CST + Python)

To reproduce and extend this SRR metamaterial project, a ZIP archive is provided containing:

• CST Microwave Studio model of the X-band SRR unit cell / slab.
• Python script implementing a more detailed parameter retrieval workflow using S-parameter data.
• A concise readme describing geometry parameters, simulation settings, and how to export/import data.

Download SRR Metamaterial Project (ZIP)

8. References

• Pendry, J. B., Holden, A. J., Robbins, D. J., & Stewart, W. J. (1999). Magnetism from conductors and enhanced nonlinear phenomena. IEEE Transactions on Microwave Theory and Techniques, 47(11), 2075–2084.
• Smith, D. R., Padilla, W. J., Vier, D. C., Nemat-Nasser, S. C., & Schultz, S. (2000). Composite medium with simultaneously negative permeability and permittivity. Physical Review Letters, 84(18), 4184–4187.
• Veselago, V. G. (1968). The electrodynamics of substances with simultaneously negative values of ε and μ. Soviet Physics Uspekhi, 10(4), 509–514.
• Caloz, C., & Itoh, T. (2005). Electromagnetic Metamaterials: Transmission Line Theory and Microwave Applications. Wiley.
• Chen, X., Grzegorczyk, T. M., Wu, B.-I., Pacheco, J., & Kong, J. A. (2004). Robust method to retrieve the constitutive effective parameters of metamaterials. Physical Review E, 70(1), 016608.
• Simovski, C. R. (2007). On electromagnetic characterization and homogenization of metamaterials. Journal of Optics A: Pure and Applied Optics, 9(3), S259–S273.
